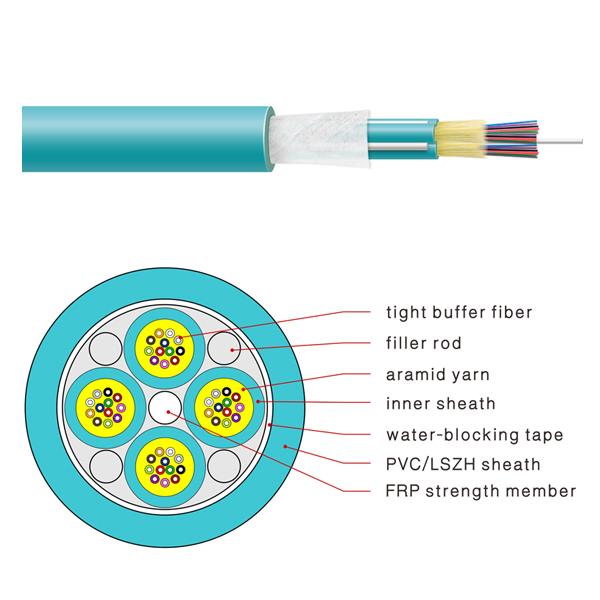

Multi Purpose Break-out Cable, the tight buffer fiber is placed on the surface with a layer of aramid yarn as strength member units, multi fibers as the subunit twist with FRP(and some cushions) into the circle, and finally into fiber optic cable with PVC or LSZH sheath,with dry-type water-blocking materials between fiber and sheath.

Features
- Each sub cable contains aramid yarn,good bend performance,without gel,cleaning friendly,easy construction and connection.
- Tight buffer fiber with single strength member and sheath to overcome the effect from bad environment and Mechanical stress.
- LSZH sheath,anti-retardant,Self-extinguishing,Suitable for machine room, cable shaft and used in indoor environment such as wiring inside the wall.
- LSZH sheath,UV,Waterproof mildew,ESCR,No acid gas release,non-corrosive room equipment, suitable for indoor and outdoor use or need a high flame-retardant grades of the indoor environment (such as wiring in the ceiling, open wire cabling etc.)

Standards
- YD/T1258.2-2009
- ICEA-596
- GR-409
- IEC794
- the requirements of UL approval for OFNR and OFNP.

Optical Characteristics

		G.652	G.655	G.657	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm	-	-	-	≤3.5B/km	≤3.5B/km
	@1300nm	-	-	-	≤1.5B/km	≤1.5B/km
	@1310nm	≤0.40/km	≤0.4/km	≤0.3/km	-	-
	@1550nm	≤0.30/km	≤0.30/km	≤0.25/km	-	-
Bandwidth (Class A)	@850	-	-	-	≥500MHZ·km	≥20MHZ·km
Bandwidth (Class A)	@1300	-	-	-	≥1000MHZ·km	≥600MHZ·km
Numerical Aperture	-	-	-	-	0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	-	≤1260nm	≤1480nm	≤1260nm	-	-

Physical Perfermence

Fiber Count	Subunit Diameter(mm)	Cable Diameter (mm)	Cable Weight(Kg/km)	Tensile Strength Long/Short Term(N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
2	2.0mm	7.0±0.5	45	500/1000	400/800	30D/15D
4	2.0mm	7.0±0.5	45	500/1000	400/800	30D/15D
6	2.0mm	8.3±0.5	62	500/1000	400/800	30D/15D
8	2.0mm	9.4±0.5	85	500/1000	400/800	30D/15D
10	2.0mm	10.7±0.5	109	500/1000	400/800	30D/15D
12	2.0mm	12.2±0.5	140	500/1000	400/800	30D/15D

Storage/Operating temperature:-20℃～﹢60℃
